WOLF-14R6
Overview
3U VPX RTM for WOLF-1448 and WOLF-1538 Video I/O

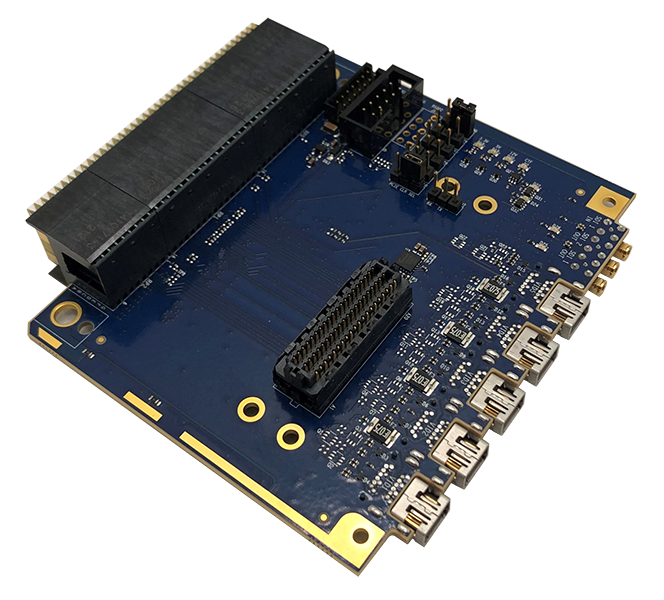

The VPX3U-RTM-VIO (WOLF-14R6) is a 3U VPX rear transition module designed to mate with the WOLF-1448 and WOLF-1538 payload modules and route their video interfaces to rear-panel connectors for chassis integration.
The standard main board provides a mix of rear video connections, including five general-purpose video outputs suitable for DisplayPort, HDMI, or DVI signaling (configuration dependent), along with two SDI outputs and one SDI input to support ingest and distribution of SDI video alongside GPU-native display links.
For MCOTS configurations, an optional daughterboard can be added to expand rear I/O with an additional SDI input and four analog RGB outputs, implemented through discrete BNC RGB connectors or via an RGB-over-network style interface, enabling retrofit support for legacy display infrastructures while preserving the same RTM footprint.
Block Diagram
The block diagram shows a 3U VPX RTM for WOLF GPU video-output modules (e.g., 1448/1538), highlighting the routing of multiple DP/HDMI/DVI-class outputs and SDI I/O to rear connectors. It also highlights the optional daughterboard expansion path used to add additional I/O (e.g., analog RGB) for MCOTS configurations.
Features
WOLF-14R6 is a 3U VPX rear transition module designed to provide rear video I/O for the WOLF-1448 and WOLF-1538 payload modules. It brings multiple display-class outputs and SDI interfaces to the rear of the chassis, with an optional daughterboard path to add additional SDI and analog outputs for MCOTS configurations.
Video I/O Features
- 5 video outputs suitable for DisplayPort/HDMI/DVI by configuration
- 2 SDI outputs
- 1 SDI input
- Optional daughterboard support:
- Adds 1 additional SDI input
- Adds 4 analog outputs using discrete BNC RGB connectors or RGB over a network connection
Connectivity / System Management
- Compatible with WOLF-1448 and WOLF-1538 modules
- RS-232 interface
- NVMRO
- I2C A and I2C B
- IPMI JTAG
- Xilinx JTAG
Mechanical / Open Systems Architecture
- 3U VPX rear transition module (RTM)
- Designed to support MCOTS expansion via optional daughterboard
- Optional daughterboard provides expanded I/O for MCOTS products
Specifications
Key configuration and performance parameters for WOLF-14R6 are summarized below for quick comparison. Values shown reflect the standard module configuration; contact WOLF if you need a tailored build or a specific payload profile.
Configuration Guide
The following guidance summarizes common ordering and configuration choices for the VPX3U-RTM-VIO rear transition module used with WOLF-1448 and WOLF-1538 payloads.
Some configuration options for this RTM include:
- Base RTM configuration (5 video outputs, 2 SDI outputs, 1 SDI input)
- Optional daughterboard to add 1 additional SDI input and 4 analog outputs
- I/O utilization dependent on the paired payload configuration
Representative ordering numbers
| Ordering Number | Description |
|---|---|
| Contact Sales | Contact Sales for the latest ordering numbers and available options. |
FAQ
WOLF-14R6 is a 3U VPX RTM designed to mate with WOLF-1448 and WOLF-1538 payload modules to route their video interfaces to rear connectors.
You add this RTM when you want:
- Rear-cabled video egress for maintainability
- Cleaner front-panel layout on payload slots
- A consistent chassis-level video connector strategy across multiple payloads
Base RTM capability includes:
- 5 video outputs suitable for DisplayPort/HDMI/DVI signaling (configuration dependent)
- 2 SDI outputs
- 1 SDI input
Optional daughterboard (MCOTS) can add:
- 1 additional SDI input
- 4 analog RGB outputs (via BNC RGB connectors or RGB-over-network style interface)
Early decision: whether you need the MCOTS daughterboard is usually driven by legacy display infrastructure requirements.
Prioritize:
- Payload/RTM mapping: confirm which payload video links map to which rear connectors
- Connector strategy: DP/HDMI/DVI interoperability plan, plus SDI connectorization and cable type
- Legacy expansion need: if analog RGB is required, validate daughterboard approach and harnessing early
- Service interfaces: RS-232, NVMRO, I2C, and JTAG access expectations for bring-up/support
For multi-video-output systems, the mapping and harness are typically the critical path.
RTM ordering commonly depends on:
- Base RTM vs optional daughterboard population
- The intended mix of DP/HDMI/DVI and SDI usage
- Any MCOTS connectorization or labeling requirements
Contact Sales for ordering information and available configuration options.
