SOSA Aligned

WOLF designs and manufactures SOSA aligned 3U and 6U VPX modules for video input and output, image and data processing, video encoding and high performance embedded computing (HPEC).

At a glance
  • NVIDIA GPUs, Jetson and IGX Thor SoCs, and AMD FPGAs
  • Payload, switch, SBC and legacy slot profiles
  • HEVC (H.265) and AVC (H.264) video encoding
  • 3U and 6U VPX form factors
About SOSA

An open standard for sensor systems

The Sensor Open Systems Architecture (SOSA) Consortium is part of The Open Group, an organization committed to the development of open, vendor-neutral technology standards and certifications.

WOLF's SOSA aligned VPX modules combine advanced NVIDIA GPUs, NVIDIA Jetson and IGX Thor SoCs, and AMD FPGAs to provide video input and output, image and data processing, video encoding to HEVC (H.265) and AVC (H.264), and HPEC.

Learn more
Product selection

SOSA aligned products

Select a product to see its full specifications, block diagram and datasheet.

3U VPX

Module
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
 Data
Sheet
163L image 163L
VPX3U-BW5000E-CX7
 NVIDIA RTX 5000 Blackwell (GB203), ConnectX-7 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop), 14.2.7 SOSA Payload, OpenVPX 10496 24GB N/A Optional 2x DisplayPort on P2B 100GbE, PCIe Gen 4 Gen 4
1636 image 1636
VPX3U-BW5000E-VO-HPC
 NVIDIA RTX 5000 Blackwell (GB203) 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop), 14.2.7 SOSA Payload, OpenVPX 10496 24GB N/A 2x Front-panel DisplayPort (removable panel) 2x DisplayPort on P2B (OpenVPX 14.2.7) PCIe Gen 4 Gen 4
167S image 167S
VPX3U-BW2000E-SWITCH
 NVIDIA RTX 2000 Blackwell (GB206) 14.4.15 SOSA Switch 3328 8GB N/A N/A 200GbE, PCIe Gen 4 Gen 4
163S image 163S
VPX3U-BW5000E-SWITCH
 NVIDIA RTX 5000 Blackwell (GB203) 14.4.15 SOSA Switch 10496 24GB N/A N/A 200GbE, PCIe Gen 4 Gen 4
1538 image 1538
VPX3U-AD5000E-VO
 NVIDIA RTX 5000 Ada (AD103) 14.6.11-0, 14.2.3 SOSA Payload, SOSA Legacy 9728 16GB N/A Up to 4x DisplayPort, options for HDMI/DVI PCIe Gen 4 Gen 4
153L image 153L
VPX3U-AD5000E-CX7
 NVIDIA RTX 5000 Ada (AD103), ConnectX-7 14.6.11-0, 14.6.13-0 SOSA Payload 9728 16GB N/A N/A PCIe Gen 4, 100GbE Gen 4
153W image 153W
VPX3U-AD5000E-CX7-OPTICAL
 NVIDIA RTX 5000E Ada (AD103), ConnectX-7 14.6.11-0 (P2A & P2B Optical) SOSA Payload 9728 16GB N/A N/A PCIe Gen 4, Dual 40/100GbE Optical Gen 4
1570 image 1570
VPX3U-AD2000E-FGX2-IO
 NVIDIA RTX 2000 Ada (AD107) 14.4.4, 14.2.3,14.2.7 SOSA Payload, SOSA Legacy, OpenVPX 3072 8GB Inputs: 2x 12G-SDI/ARINC 818 or 4x 3G-SDI/ARINC 818, CVBS (optional) Up to 4x 12G-/3G-SDI or ARINC 818, optional DP 1.4/HDMI/DVI PCIe Gen 4 Gen 4
1578 image 1578
VPX3U-AD2000E-VO
 NVIDIA RTX 2000 Ada (AD107) 14.6.11-0 (P2 depop), 14.2.3 SOSA Payload, SOSA Legacy 3072 8GB N/A Up to 3x DisplayPort, HDMI/DVI options PCIe Gen 4 Gen 4
1448 image 1448
VPX3U-A4500E-VO
 NVIDIA RTX A4500 (GA104) 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) SOSA Payload 5888 16GB N/A Up to 4x DisplayPort 1.4 (DP++), options for HDMI/DVI PCIe Gen 4 Gen 4
144L image 144L
VPX3U-A4500E-CX7
 NVIDIA RTX A4500 (GA104), ConnectX-7 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) SOSA Payload 5888 16GB N/A N/A PCIe Gen 4, 100GbE Gen 4
1440 image 1440
VPX3U-A4500E-IO
 NVIDIA RTX A4500 (GA104) 14.2.3 SOSA Payload, SOSA Legacy 5888 16GB 2x 3G-SDI 2x DisplayPort 1.4, 2x converted outputs (3G-SDI/CVBS/RGB) PCIe Gen 4 Gen 4
16T0 image 16T0
VPX3U-THOR-CX7-FGX2-SBC
 NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 14.2.16 SOSA SBC 2560 128GB SDI (via FGX2), CVBS DP MST/HDMI, SDI (via FGX2), CVBS 100GbE, PCIe Gen 5, SDI I/O Gen 5
16T5 image 16T5
VPX3U-THOR-CX7-SBC
 NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 14.2.16 SOSA SBC 2560 128GB N/A DisplayPort MST / HDMI 100GbE, PCIe Gen 5, 2.5GbE Gen 5
16T1 image 16T1
VPX3U-THOR-SBC
 NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration) 14.2.16 SOSA SBC 2560 128GB N/A Up to 3x DisplayPort (MST/HDMI) PCIe Gen 4, 2x10/25GbE, 2.5GbE TSN Gen 4
16T9 image 16T9
VPX3U-THOR-RD
 NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration) 14.2.16 SOSA SBC 2560 128GB N/A DisplayPort PCIe Gen 4, 2x10GbE, 2.5GbE Gen 4
16TZ image 16TZ
VPX3U-THOR-CX7-PAY
 NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) SOSA Payload 2560 128GB N/A DisplayPort MST/HDMI (optional additional DP via P2B) 100GbE, PCIe Gen 5 Gen 5
14T0 image 14T0
VPX3U-ORIN-CX7-FGX2-SBC
 NVIDIA Jetson AGX Orin Industrial, ConnectX-7 14.2.16 SOSA SBC 2048 64GB 2x SDI (via FGX2), CVBS (optional) 1x DisplayPort (MST/HDMI via DP++), 2x SDI (via FGX2) PCIe Gen 4, 100GbE Gen 4
14T5 image 14T5
VPX3U-ORIN-CX7-SBC
 NVIDIA Jetson AGX Orin Industrial, ConnectX-7 14.2.16 SOSA SBC 2048 64GB N/A 1x DisplayPort **or** 1x HDMI (configurable) PCIe Gen 4, 100GbE Gen 4
14T1 image 14T1
VPX3U-ORIN-SBC
 NVIDIA Jetson AGX Orin Industrial 14.2.16 SOSA SBC 2048 64GB N/A 1x DisplayPort (MST) or 1x HDMI PCIe Gen 4 Gen 4
14TZ image 14TZ
VPX3U-ORIN-CX7-HPC
 NVIDIA Jetson AGX Orin Industrial, ConnectX-7 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) SOSA Payload 2048 64GB N/A N/A PCIe Gen 4, 100GbE Gen 4

6U VPX

Module
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
  • Select values
 Data
Sheet
2638 image 2638
VPX6U-BW5000E-DUAL-VO
 NVIDIA RTX 5000 Blackwell (GB203) 10.6.4 (P3 & P6 depopulated) SOSA Payload 10496 24GB N/A Up to 8x DisplayPort, HDMI options PCIe Gen 4 Gen 4
263L image 263L
VPX6U-BW5000E-DUAL-VO-CX7
 NVIDIA RTX 5000 Blackwell (GB203), ConnectX-7 10.2.7, 10.6.4, 10.6.3 SOSA Payload, OpenVPX 10496 24GB N/A Up to 8x DisplayPort, HDMI optional PCIe Gen 4, Dual 100GbE KR4 Gen 4
2538 image 2538
VPX6U-AD5000E-DUAL-VO
 NVIDIA RTX 5000 Ada (AD103) 10.6.4 (P3 & P6 depopulated) SOSA Payload 9728 16GB N/A Up to 8x DisplayPort, HDMI options PCIe Gen 4 Gen 4
2348 image 2348
VPX6U-RTX5000E-DUAL-VO
 NVIDIA RTX 5000 Turing (TU104) 10.6.4 (P3 & P6 depopulated) SOSA Payload 3072 16GB N/A Up to 8x DisplayPort, HDMI options, DVI options PCIe Gen 3 Gen 3
Slot profiles

SOSA slot profiles

The SOSA slot profiles WOLF's modules are built to, by form factor.

3U VPX SOSA Slot Profiles

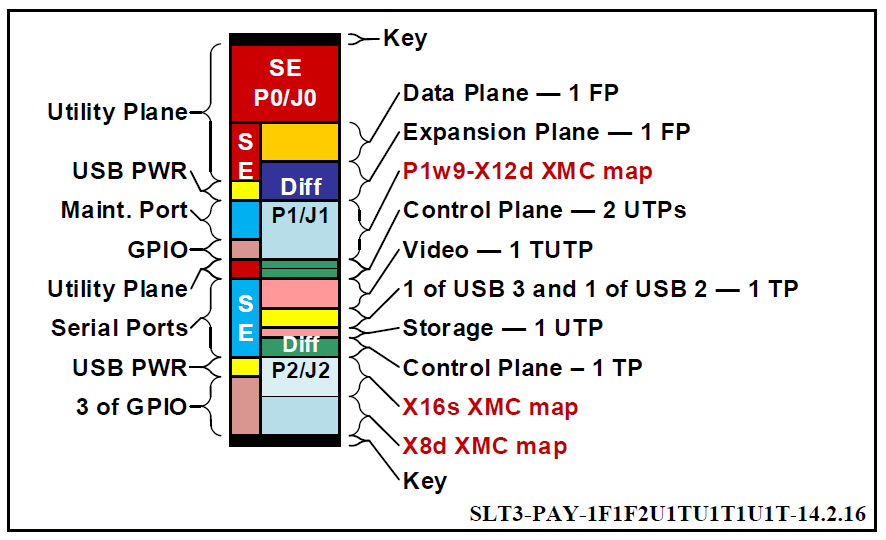

14.2.16 I/O intensive SBC slot profile diagram
14.2.16 I/O intensive SBC

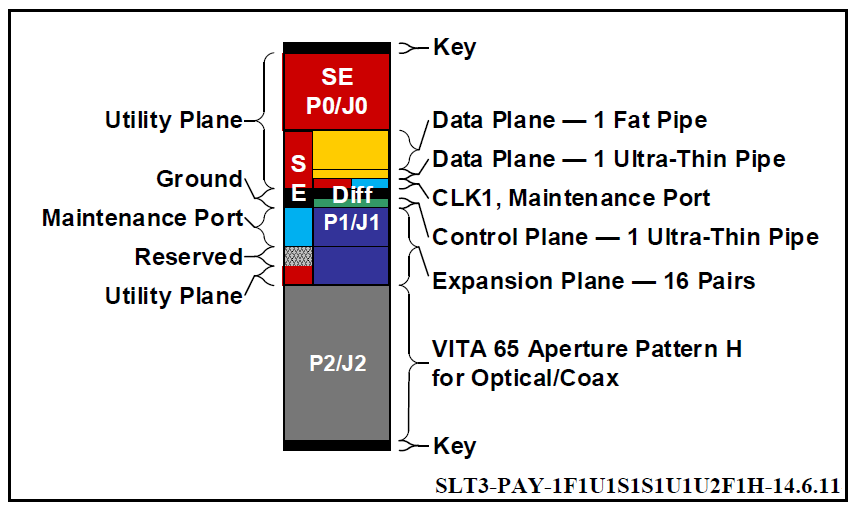

14.6.11 Payload with coaxial/optical connections on P2, or P2 depopulated slot profile diagram
14.6.11 Payload with coaxial/optical connections on P2, or P2 depopulated

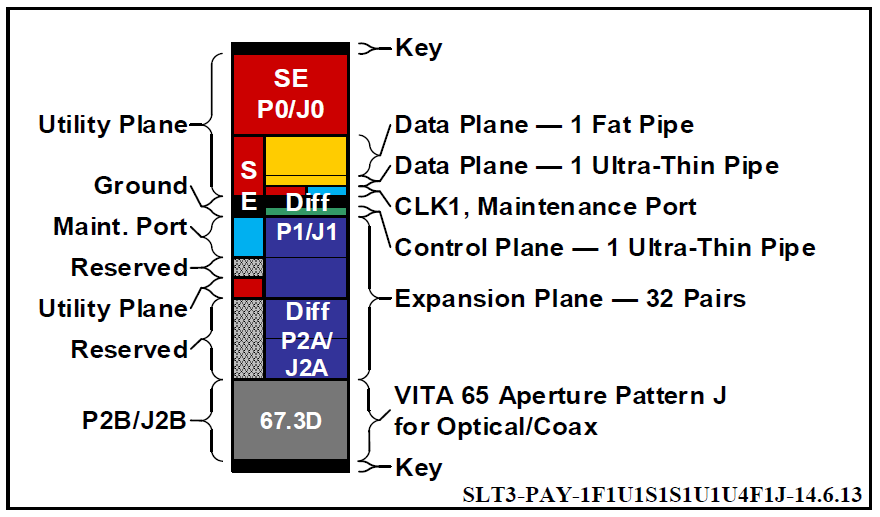

14.6.13 Payload with coaxial/optical connections on P2B, or P2B depopulated slot profile diagram
14.6.13 Payload with coaxial/optical connections on P2B, or P2B depopulated

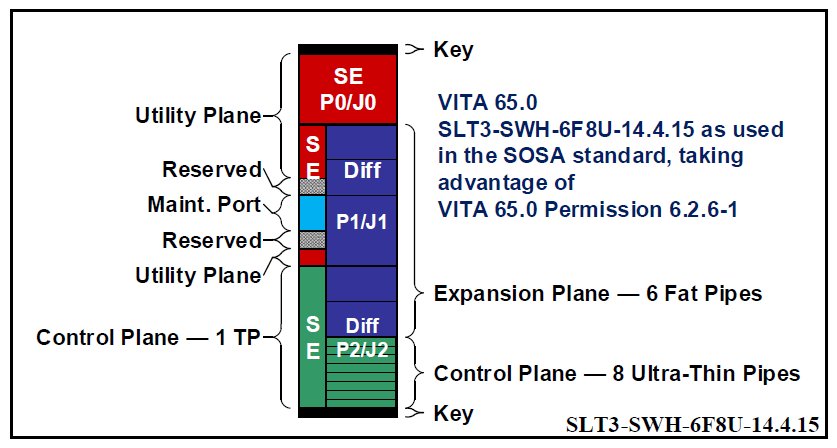

14.4.15 Switch slot profile diagram
14.4.15 Switch

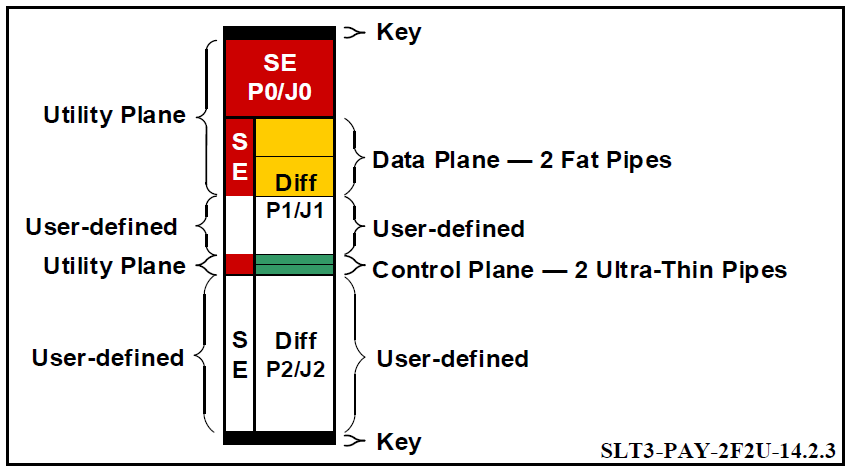

14.2.3 Legacy slot profile diagram
14.2.3 Legacy

6U VPX SOSA Slot Profiles

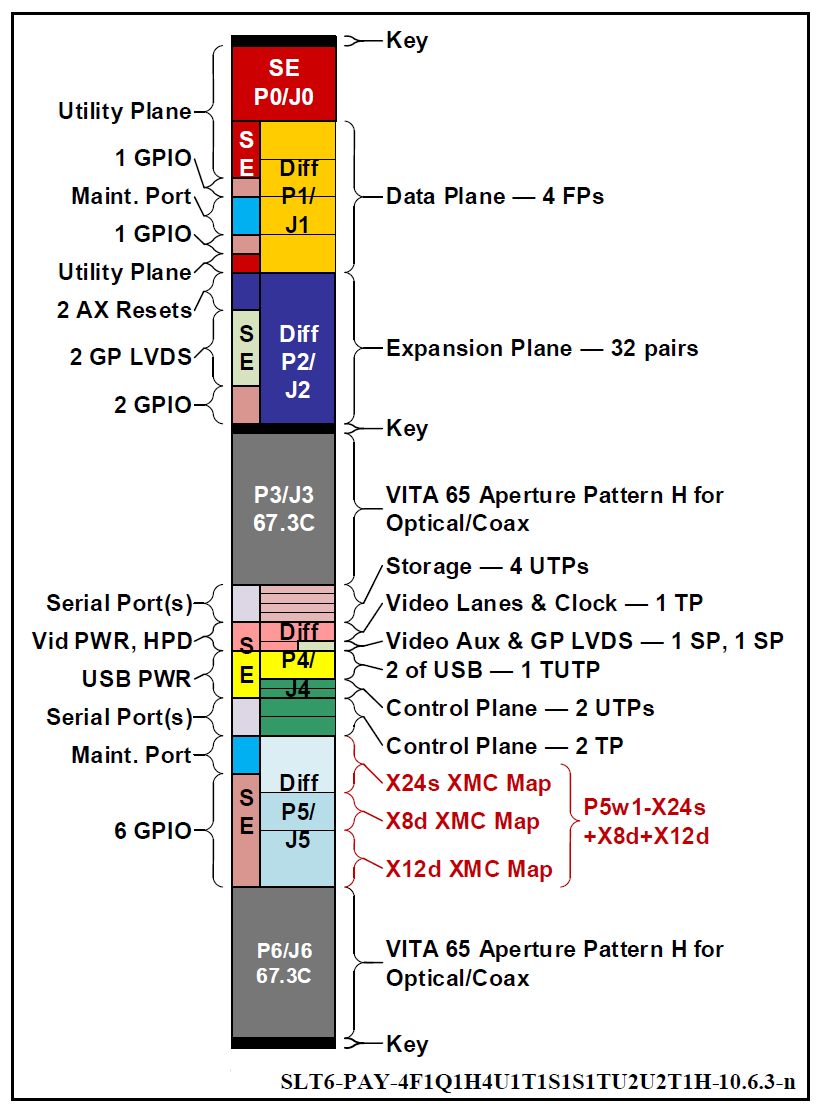

10.6.3 Payload with coaxial/optical connections on P3 and P6, and XMC mapping on P5 slot profile diagram
10.6.3 Payload with coaxial/optical connections on P3 and P6, and XMC mapping on P5

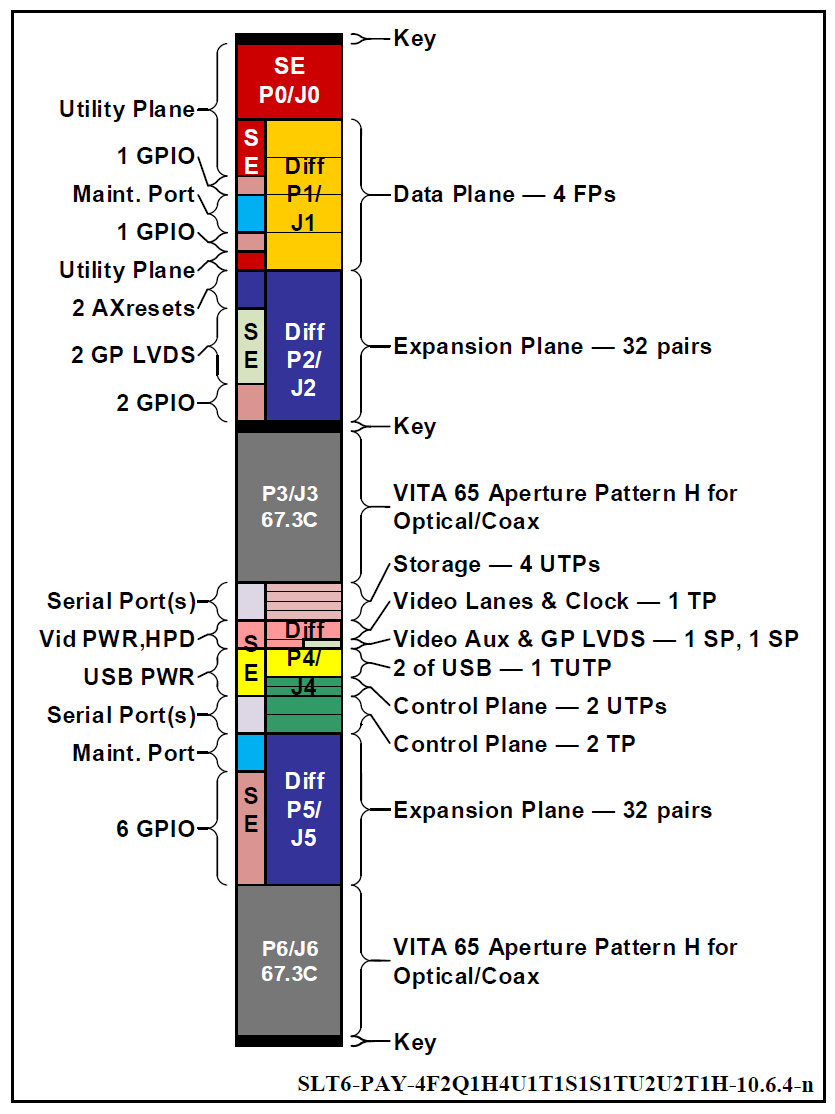

10.6.4 Payload with coaxial/optical connections on P3 and P6, or P3 and P6 depopulated slot profile diagram
10.6.4 Payload with coaxial/optical connections on P3 and P6, or P3 and P6 depopulated
Get in touch

Building a SOSA aligned system?

Talk to our team about slot profiles, configurations and integration for your program.
