Development & Integration
Dev & RTM
WOLF offers an array of compatible development units and rear-transition modules.
| Module Image |
Data Sheet | |||||||
|---|---|---|---|---|---|---|---|---|
 |

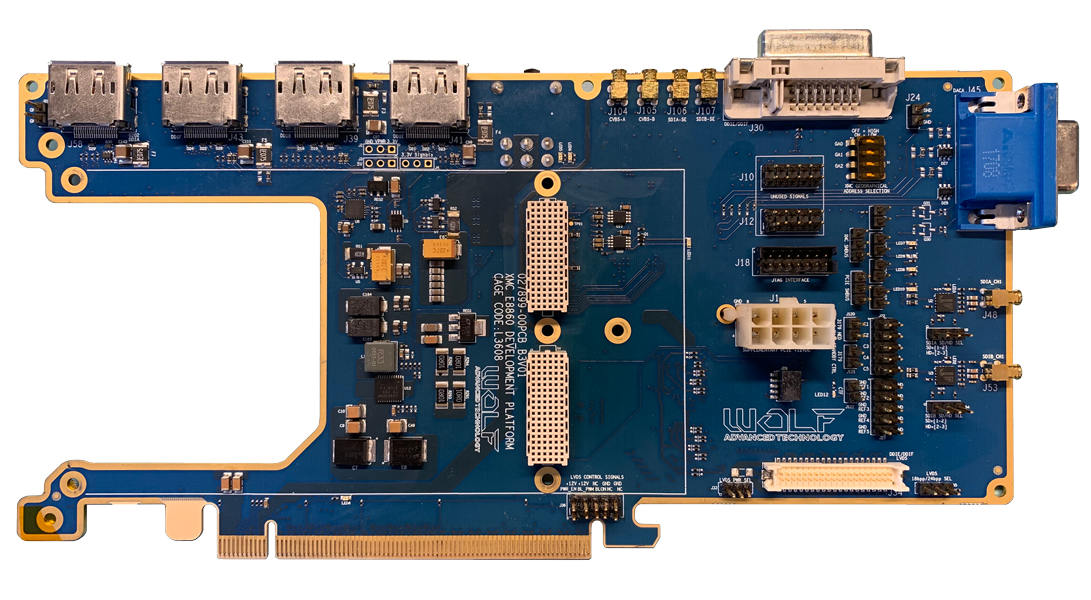

027899 | XMC-DEV-VO (WOLF-027899) | N/A, WOLF-3476 | N/A | 4x DisplayPort (DP++), 1x DVI-I, 1x VGA, LVDS, up to 2x SDI, 2x CVBS | Yes | N/A | |
 |

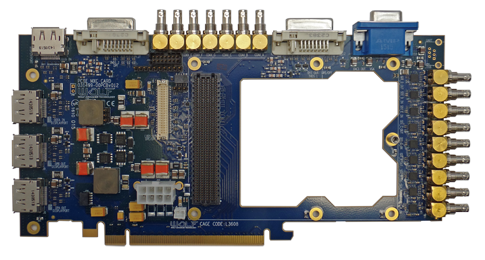

0314 | MXC-FGX-CARRIER (WOLF-0314) | N/A, WOLF-0308, WOLF-0325, WOLF-7080 | DisplayPort A/B In, SDI A/B/C/D In | DisplayPort A/B Out, DVI Out, VGA Out, LVDS Out, SDI A/B/C/D Out | Yes | Yes | |
 |

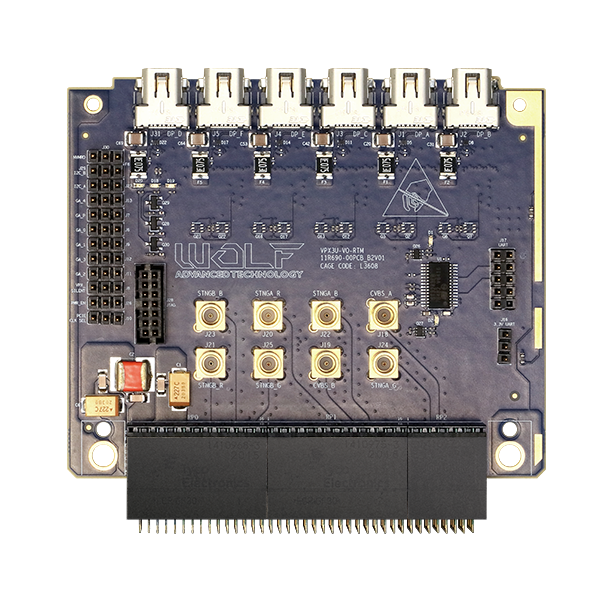

11R6 | VPX3U-RTM-VO (WOLF-11R6) | N/A, WOLF-1348, WOLF-1178, WOLF-1116, WOLF-0197 | N/A | 6x Mini-DisplayPort (DP++), 2x STANAG RGB, 2x CVBS | Yes | Yes | |
 |

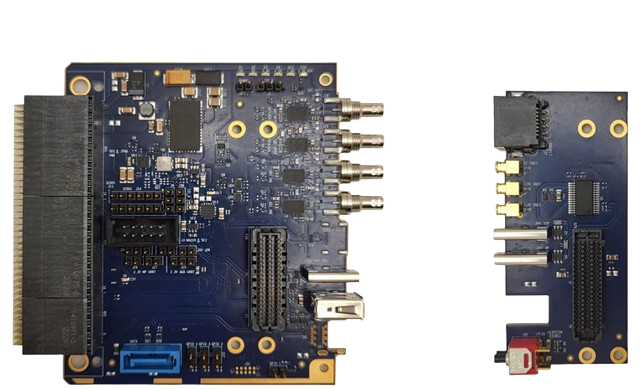

14R1 | VPX3U-ORIN-RTM (WOLF-14R1) | N/A, WOLF-14T0, WOLF-14T5, WOLF-14T2 | SDI, CVBS (active I/O depends on SBC config) | DisplayPort/HDMI, SDI (panel connectors, active I/O depends on SBC config) | Yes | Yes | |
 |

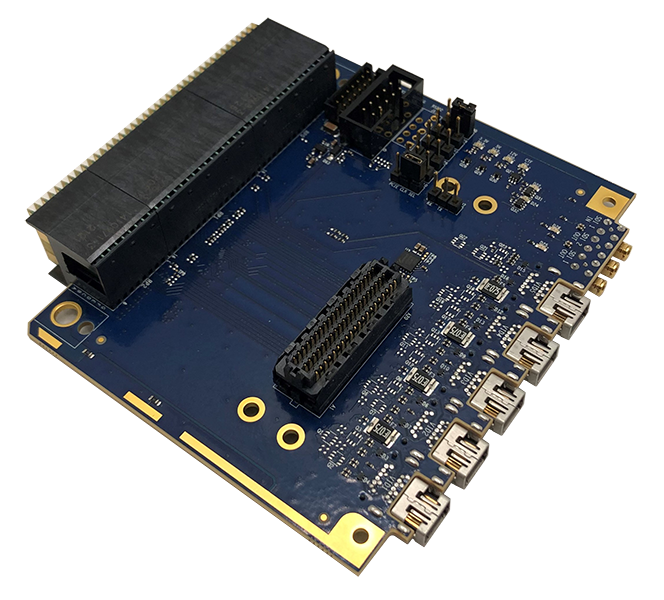

14R6 | VPX3U-RTM-VIO (WOLF-14R6) | N/A, WOLF-1538, WOLF-1448 | 1x SDI (+1x SDI with daughterboard) | 5x DP/HDMI/DVI, 2x SDI (+4x analog RGB with daughterboard) | Yes | Yes | |
 |

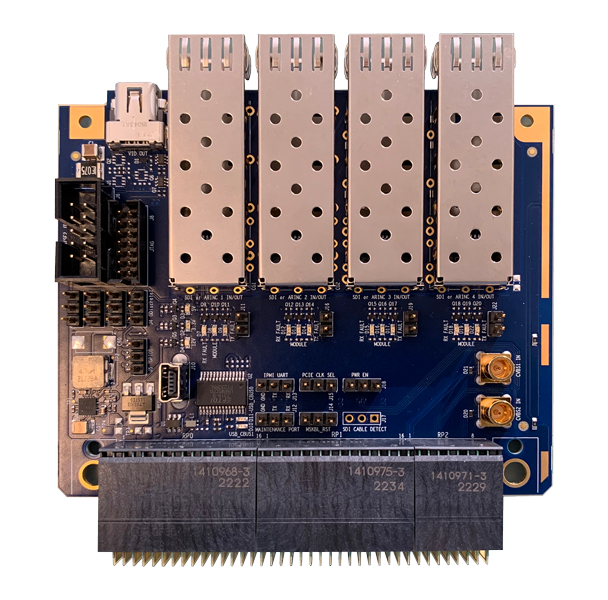

15R0 | VPX3U-RTM-VIO (WOLF-15R0) | N/A, WOLF-1570 | Up to 4x SDI/ARINC 818 RX via SFP+, 2x CVBS In | 1x Mini DisplayPort, up to 4x SDI/ARINC 818 TX via SFP+ | Yes | N/A | |
 |

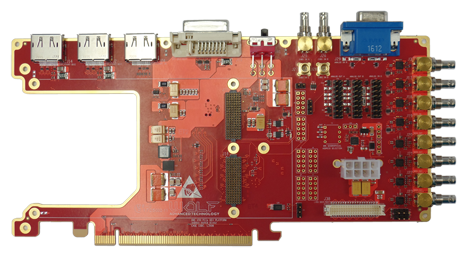

30D0 | XMC-DEV-IO (WOLF-30D0) | WOLF-30D2, WOLF-30DP, WOLF-3080, WOLF-3180 | up to 4x SDI In, 4x CVBS In (A–D), analog In A/B, 1x DisplayPort In | 1x DisplayPort, 1x DVI-I, up to 4x SDI Out, analog Out A/B | Yes | Yes | |
 |

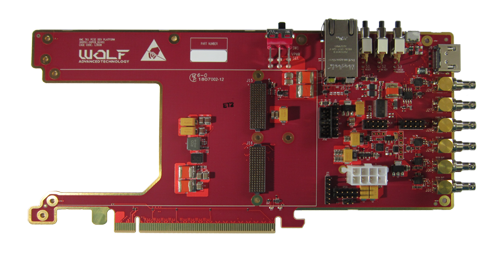

30DP | XMC-DEV-TK1-FGX (WOLF-30DP) | WOLF-30D0, WOLF-30D2, WOLF-30TP | SDI, analog (via mounted XMC) | HDMI, SDI (via mounted XMC) | Yes | Yes | |
 |

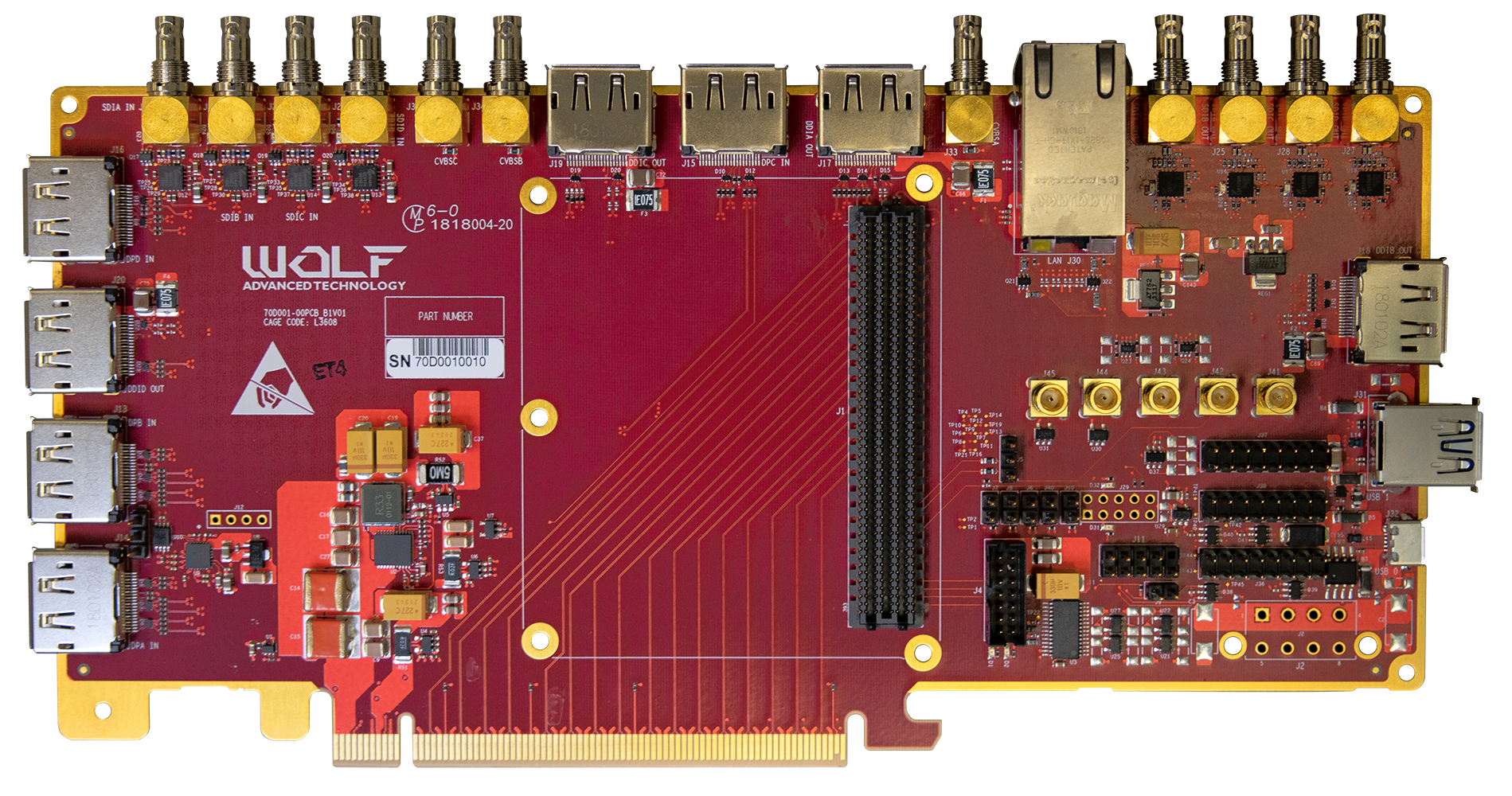

70D0 | MXC2-DEV-IO (WOLF-70D0) | N/A, WOLF-7080 | 4x DP In (A/B/C/D), 4x SDI In (A/B/C/D), CVBS A/B/C | 4x DP Out (A/B/C/D), 4x SDI Out (A/B/C/D), RGsB/VGA (A/B/C), CVBS A/B/C | Yes | Yes |
WOLF offers a selection of development carriers and RTMs to support module evaluation and integration. Contact us to discuss compatibility and options.
