Mezzanine Form Factor
XMC
WOLF offers advanced NVIDIA GPUs and AMD FPGAs for high‑performance compute and AI applications.
| Module Image |
Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
3080 XMC-FGX-SDI-4IO | N/A | - | - | Up to 4x SDI, up to 4x analog (CVBS or 2x CVBS + 2x STANAG) | Up to 4x SDI, 2x analog (STANAG/VGA) | PCIe Gen 2 x4 | Gen 2 | ||
 |

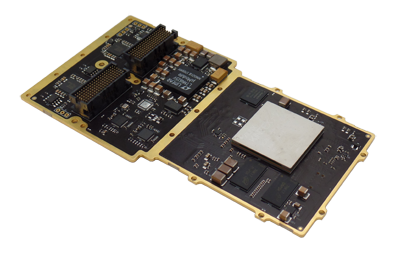

3081 XMC-FGX-SDI-IO | N/A | - | - | Up to 2x SDI, up to 3x CVBS, up to 2x RGB/STANAG | Up to 2x SDI, 1x CVBS, up to 2x RGB/STANAG | PCIe Gen 2 x4 | Gen 2 | ||
 |

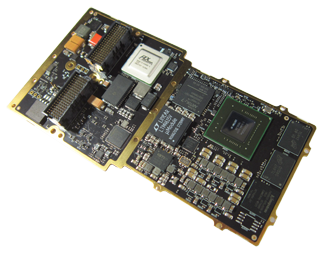

30TP XMC-TK1-FGX | Legacy: This is a legacy product. Contact WOLF to discuss current alternatives. | NVIDIA Tegra K1 | 192 | 4GB | 2x HD-SDI or 1x 3G-SDI, 2x CVBS | 2x HD-SDI, 1x HDMI | PCIe x4, Ethernet(GigE) | Gen 2 | |
 |

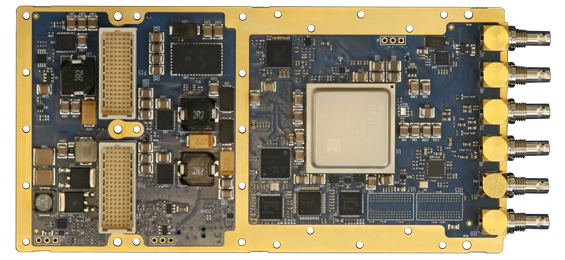

3180 XMC-FGX2-SDI-4IO | N/A | - | - | 2x 12G-SDI, up to 2x DP (HD 1080p), up to 3x analog, 2x CoaXPress (up to CXP-6) | Up to 4x 12G-SDI, 1x VGA (via FGX2) | PCIe Gen 3 x8 | Gen 3 | ||
 |
3183 XMC-FGX2-8IO | N/A | - | - | Up to 8x 12G-/3G-SDI and/or ARINC 818, CVBS NTSC/PAL, HDMI/DVI (optional) | Up to 8x 12G-/3G-SDI and/or ARINC 818 (configurable) | PCIe Gen 3 x8 | Gen 3 | ||
 |

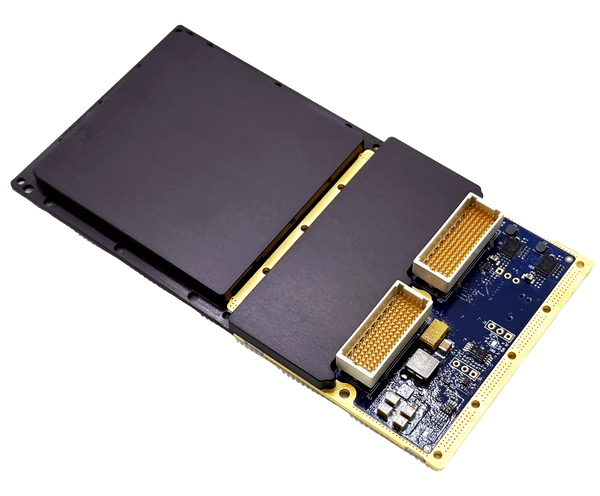

3184 DAL-C XMC-FGX2-VIO-DO254 | N/A | - | - | Up to 4x HD/3G-SDI in; 2x DP inputs (HBR2/MST); 1x RGsB input | Up to 4x HD/3G-SDI out; direct DP-to-SDI conversion | PCIe Gen 3 x4 | Gen 3 | ||
 |
3185 XMC-FGX2-6IO | N/A | - | - | Up to 4x SDI, up to 2x DP (MST), ARINC 818 (optional), CoaXPress (optional), CVBS/RGsB (optional) | Up to 4x SDI, DP-to-SDI conversion in FGX2 (optional) | PCIe Gen 3 x4 | Gen 3 | ||
 |
3476 XMC-A2000E-VO | NVIDIA RTX A2000E (GA107) | 2560 | 8GB | N/A | Up to 4x DisplayPort 1.4/HDMI/DVI (configurable), 1x VGA (optional, CC) | PCIe Gen 4 x8 | Gen 4 | ||
 |

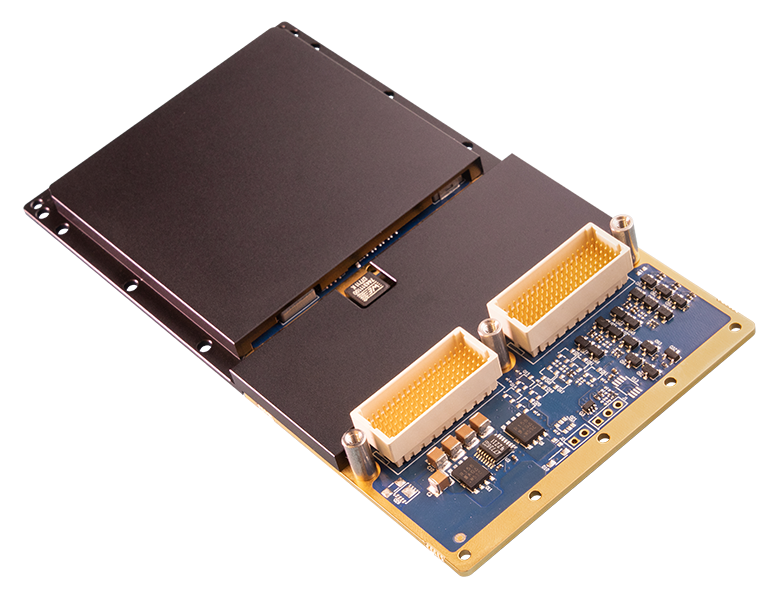

3570 XMC-AD2000E-FGX2-IO | NVIDIA RTX 2000 Ada (AD107) | 3072 | 8GB | Up to 4x SDI, 2x CVBS (optional) | Up to 2x DP/HDMI/DVI, up to 2x SDI (or up to 4x via FGX2) | PCIe Gen 3 x8 | Gen 3 | ||
 |
3576 XMC-AD2000E-VO | NVIDIA RTX 2000 Ada (AD107) | 3072 | 8GB | N/A | Up to 3x DP++ 1.4 | PCIe Gen 4 x8 | Gen 4 | ||
 |

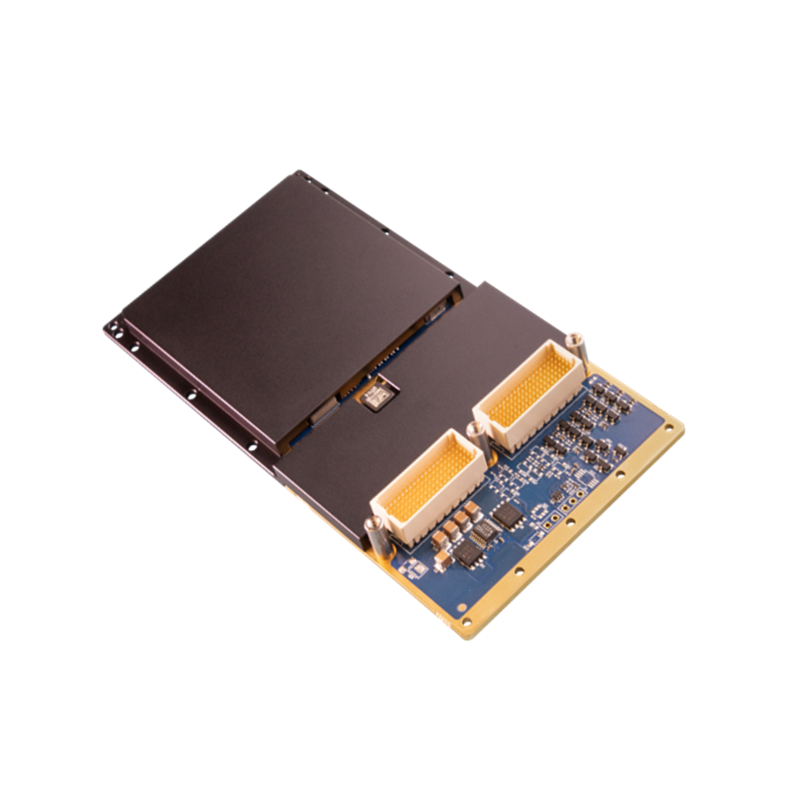

3696 XMC-BW500E-VO | NVIDIA RTX 500 Blackwell (GB203) | 1792 | 6GB | N/A | Up to 3x DP++ 2.1b | PCIe Gen 4 x8 (Gen 5 capable) | Gen 4 |
- Legacy : This is a legacy product. Contact WOLF to discuss current alternatives.
WOLF designs and manufactures XMC modules. Contact us to discuss your specific requirements.
