VPX Form Factor
3U VPX
WOLF offers advanced NVIDIA GPUs and AMD FPGAs for high‑performance compute and AI applications.
| Module Image |
Data Sheet | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
16TZ VPX3U-THOR-CX7-PAY | Preliminary: This product is preliminary. Specifications are subject to change. Contact WOLF for ordering numbers and configuration options. | NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) | SOSA Payload | 2560 | 128GB | N/A | DisplayPort MST/HDMI (optional additional DP via P2B) | 100GbE, PCIe Gen 5 | Gen 5 | |
 |
16T9 VPX3U-THOR-RD | NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration) | 14.2.16 | SOSA SBC | 2560 | 128GB | N/A | DisplayPort | PCIe Gen 4, 2x10GbE, 2.5GbE | Gen 4 | ||
 |
16T5 VPX3U-THOR-CX7-SBC | Preliminary: This product is preliminary. Specifications are subject to change. Contact WOLF for ordering numbers and configuration options. | NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 | 14.2.16 | SOSA SBC | 2560 | 128GB | N/A | DisplayPort MST / HDMI | 100GbE, PCIe Gen 5, 2.5GbE | Gen 5 | |
 |
16T1 VPX3U-THOR-SBC | Preliminary: This product is preliminary. Specifications are subject to change. Contact WOLF for ordering numbers and configuration options. | NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration) | 14.2.16 | SOSA SBC | 2560 | 128GB | N/A | Up to 3x DisplayPort (MST/HDMI) | PCIe Gen 4, 2x10/25GbE, 2.5GbE TSN | Gen 4 | |
 |
16T0 VPX3U-THOR-CX7-FGX2-SBC | Preliminary: This product is preliminary. Specifications are subject to change. Contact WOLF for ordering numbers and configuration options. | NVIDIA IGX Thor (T5000) (Arm CPU + Blackwell GPU acceleration), ConnectX-7 | 14.2.16 | SOSA SBC | 2560 | 128GB | SDI (via FGX2), CVBS | DP MST/HDMI, SDI (via FGX2), CVBS | 100GbE, PCIe Gen 5, SDI I/O | Gen 5 | |
 |
167S VPX3U-BW2000E-SWITCH | NVIDIA RTX 2000 Blackwell (GB206) | 14.4.15 | SOSA Switch | 3328 | 8GB | N/A | N/A | 200GbE, PCIe Gen 4 | Gen 4 | ||
 |
163S VPX3U-BW5000E-SWITCH | NVIDIA RTX 5000 Blackwell (GB203) | 14.4.15 | SOSA Switch | 10496 | 24GB | N/A | N/A | 200GbE, PCIe Gen 4 | Gen 4 | ||
 |
163L VPX3U-BW5000E-CX7 | NVIDIA RTX 5000 Blackwell (GB203), ConnectX-7 | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop), 14.2.7 | SOSA Payload, OpenVPX | 10496 | 24GB | N/A | Optional 2x DisplayPort on P2B | 100GbE, PCIe Gen 4 | Gen 4 | ||
 |
1636 VPX3U-BW5000E-VO-HPC | NVIDIA RTX 5000 Blackwell (GB203) | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop), 14.2.7 | SOSA Payload, OpenVPX | 10496 | 24GB | N/A | 2x Front-panel DisplayPort (removable panel) 2x DisplayPort on P2B (OpenVPX 14.2.7) | PCIe Gen 4 | Gen 4 | ||
 |
1578 VPX3U-AD2000E-VO | NVIDIA RTX 2000 Ada (AD107) | 14.6.11-0 (P2 depop), 14.2.3 | SOSA Payload, SOSA Legacy | 3072 | 8GB | N/A | Up to 3x DisplayPort, HDMI/DVI options | PCIe Gen 4 | Gen 4 | ||
 |

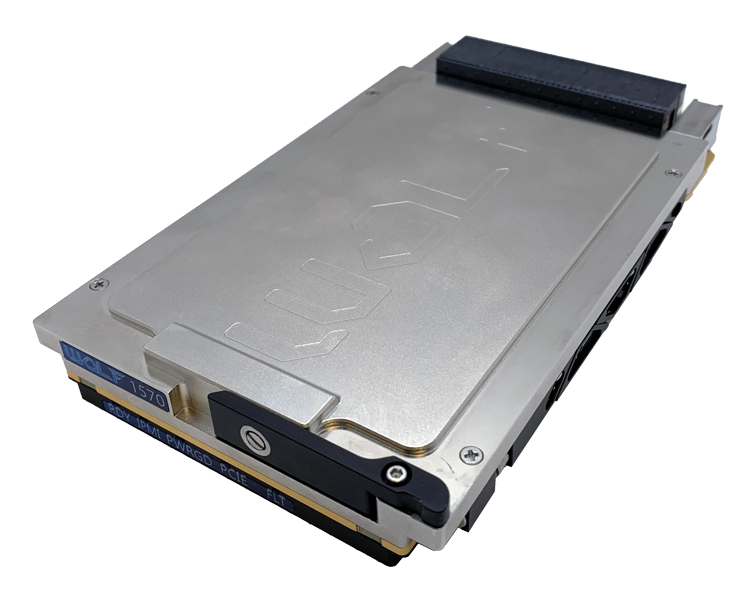

1570 VPX3U-AD2000E-FGX2-IO | NVIDIA RTX 2000 Ada (AD107) | 14.4.4, 14.2.3,14.2.7 | SOSA Payload, SOSA Legacy, OpenVPX | 3072 | 8GB | Inputs: 2x 12G-SDI/ARINC 818 or 4x 3G-SDI/ARINC 818, CVBS (optional) | Up to 4x 12G-/3G-SDI or ARINC 818, optional DP 1.4/HDMI/DVI | PCIe Gen 4 | Gen 4 | ||
 |

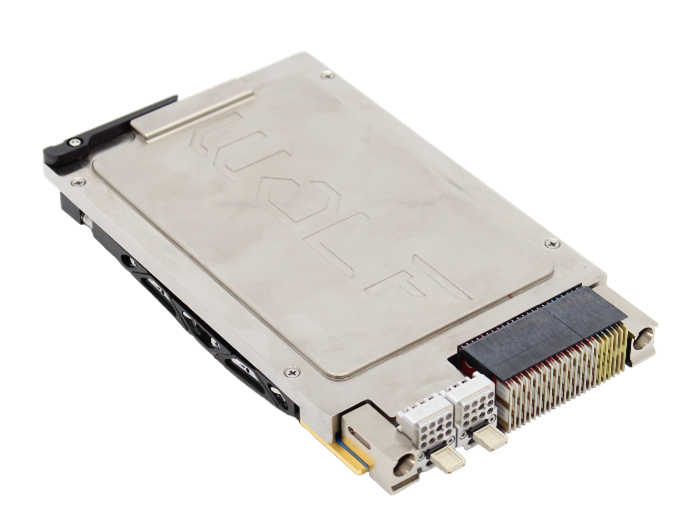

153W VPX3U-AD5000E-CX7-OPTICAL | NVIDIA RTX 5000E Ada (AD103), ConnectX-7 | 14.6.11-0 (P2A & P2B Optical) | SOSA Payload | 9728 | 16GB | N/A | N/A | PCIe Gen 4, Dual 40/100GbE Optical | Gen 4 | ||
 |

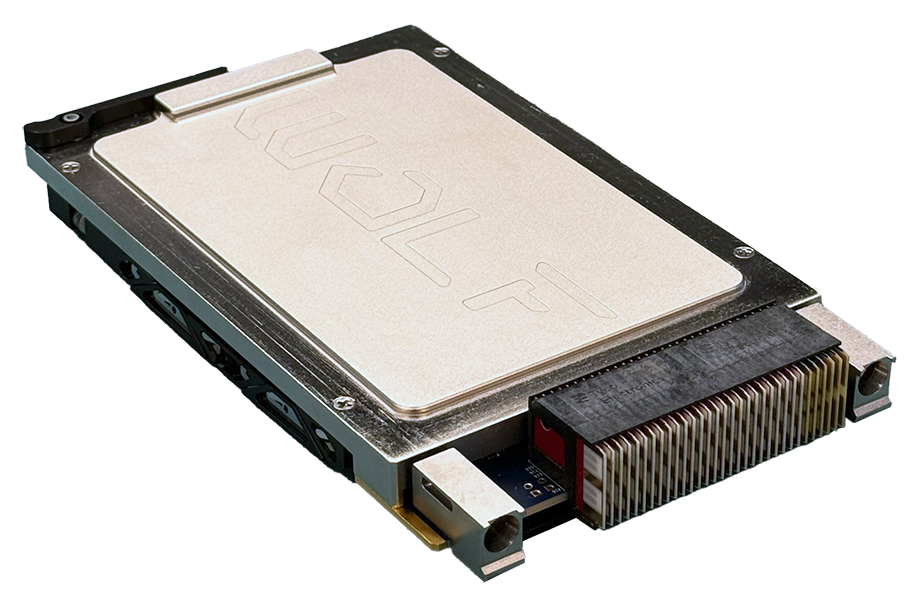

153L VPX3U-AD5000E-CX7 | NVIDIA RTX 5000 Ada (AD103), ConnectX-7 | 14.6.11-0, 14.6.13-0 | SOSA Payload | 9728 | 16GB | N/A | N/A | PCIe Gen 4, 100GbE | Gen 4 | ||
 |

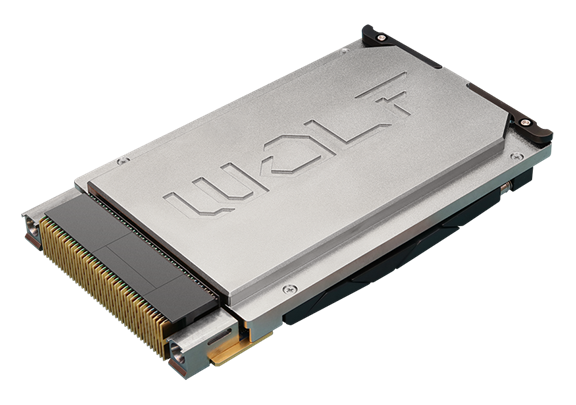

1539 VPX3U-AD5000E-VO-CV | NVIDIA RTX 5000 Ada (AD103) | 14.4.4 | OpenVPX | 9728 | 16GB | N/A | Up to 3x DP/HDMI/DVI, optional 2x 12G-SDI via FGX2 | PCIe Gen 4 | Gen 4 | ||
 |

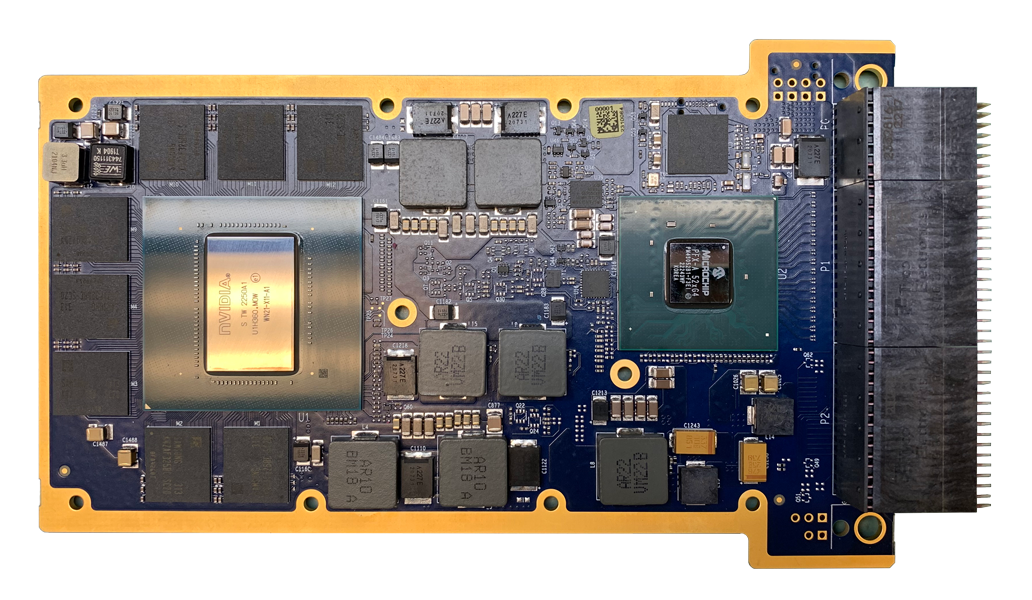

1538 VPX3U-AD5000E-VO | NVIDIA RTX 5000 Ada (AD103) | 14.6.11-0, 14.2.3 | SOSA Payload, SOSA Legacy | 9728 | 16GB | N/A | Up to 4x DisplayPort, options for HDMI/DVI | PCIe Gen 4 | Gen 4 | ||
 |

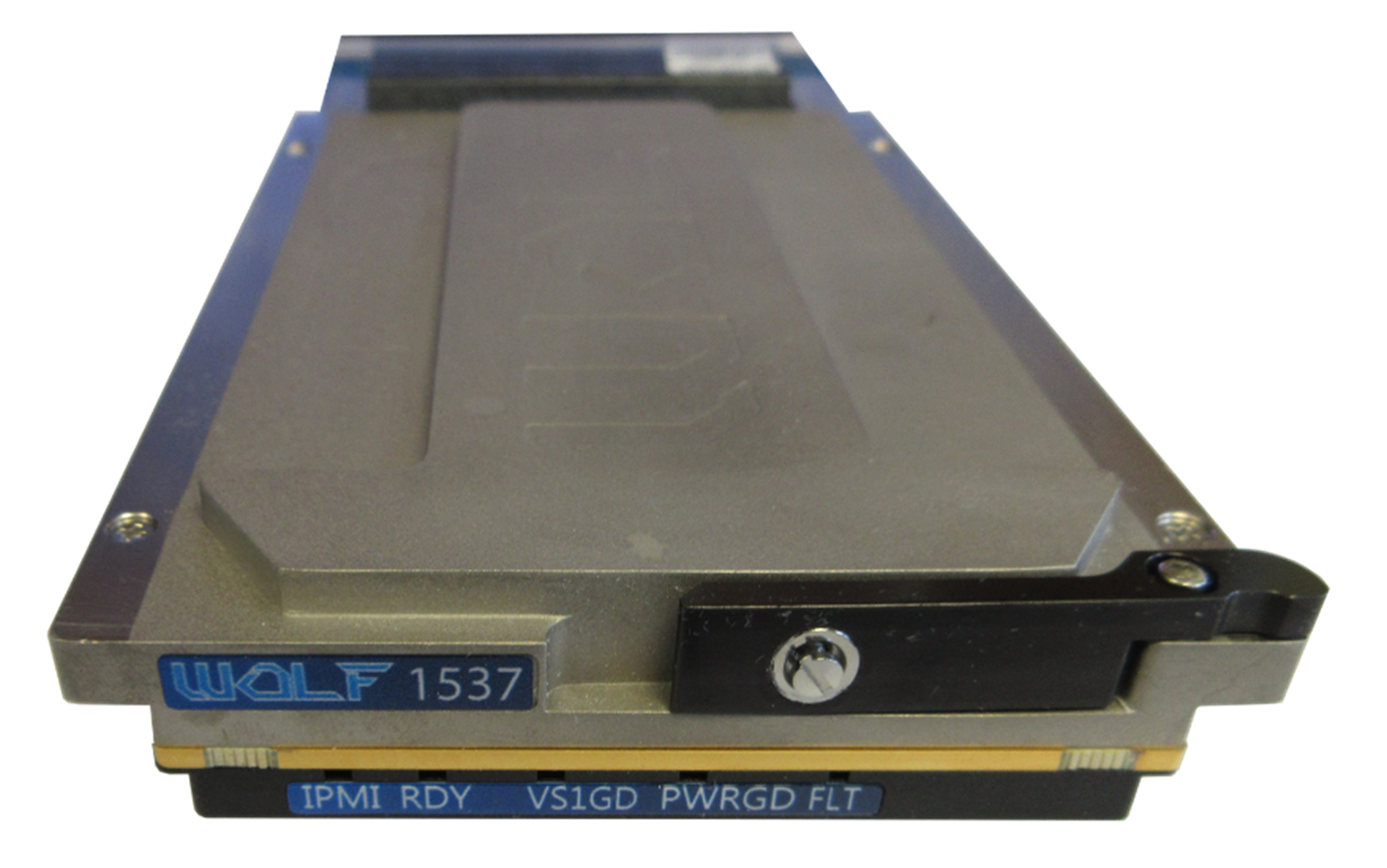

1537 VPX3U-AD5000E-FGX2-CV | NVIDIA RTX 5000 Ada (AD103) | 14.4.4 | OpenVPX | 9728 | 16GB | N/A | 1x DP/HDMIDVI up to 4x 12G SDI/ARINC 818 | PCIe Gen 4 | Gen 4 | ||
 |
14TZ VPX3U-ORIN-CX7-HPC | NVIDIA Jetson AGX Orin Industrial, ConnectX-7 | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) | SOSA Payload | 2048 | 64GB | N/A | N/A | PCIe Gen 4, 100GbE | Gen 4 | ||
 |
14T5 VPX3U-ORIN-CX7-SBC | NVIDIA Jetson AGX Orin Industrial, ConnectX-7 | 14.2.16 | SOSA SBC | 2048 | 64GB | N/A | 1x DisplayPort **or** 1x HDMI (configurable) | PCIe Gen 4, 100GbE | Gen 4 | ||
 |

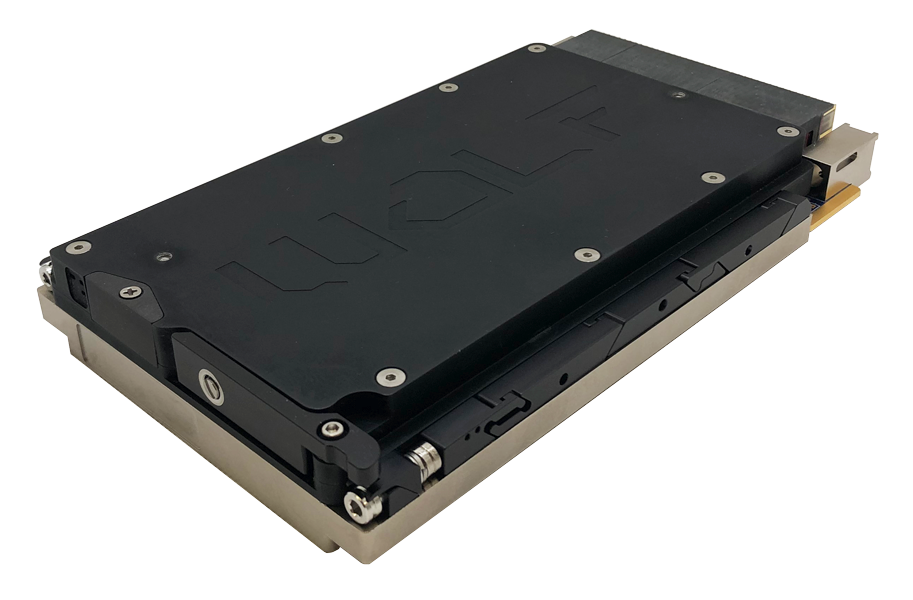

14T1 VPX3U-ORIN-SBC | Reaching EOL: This product is reaching end of life. Contact WOLF to discuss new products that meet your requirements. | NVIDIA Jetson AGX Orin Industrial | 14.2.16 | SOSA SBC | 2048 | 64GB | N/A | 1x DisplayPort (MST) or 1x HDMI | PCIe Gen 4 | Gen 4 | |
 |
14T0 VPX3U-ORIN-CX7-FGX2-SBC | NVIDIA Jetson AGX Orin Industrial, ConnectX-7 | 14.2.16 | SOSA SBC | 2048 | 64GB | 2x SDI (via FGX2), CVBS (optional) | 1x DisplayPort (MST/HDMI via DP++), 2x SDI (via FGX2) | PCIe Gen 4, 100GbE | Gen 4 | ||
 |
1471 VPX3U-A2000E-FGX2-COAX | Reaching EOL: This product is reaching end of life. Contact WOLF to discuss new products that meet your requirements. | NVIDIA RTX A2000 (Ampere) | 14.6.11-16 | SOSA Payload | 2560 | 8GB | 2x 12G-SDI (coax), 2x CVBS (coax) | 4x 12G-SDI (coax) | PCIe Gen 4 | Gen 4 | |
 |
144L VPX3U-A4500E-CX7 | NVIDIA RTX A4500 (GA104), ConnectX-7 | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) | SOSA Payload | 5888 | 16GB | N/A | N/A | PCIe Gen 4, 100GbE | Gen 4 | ||
 |

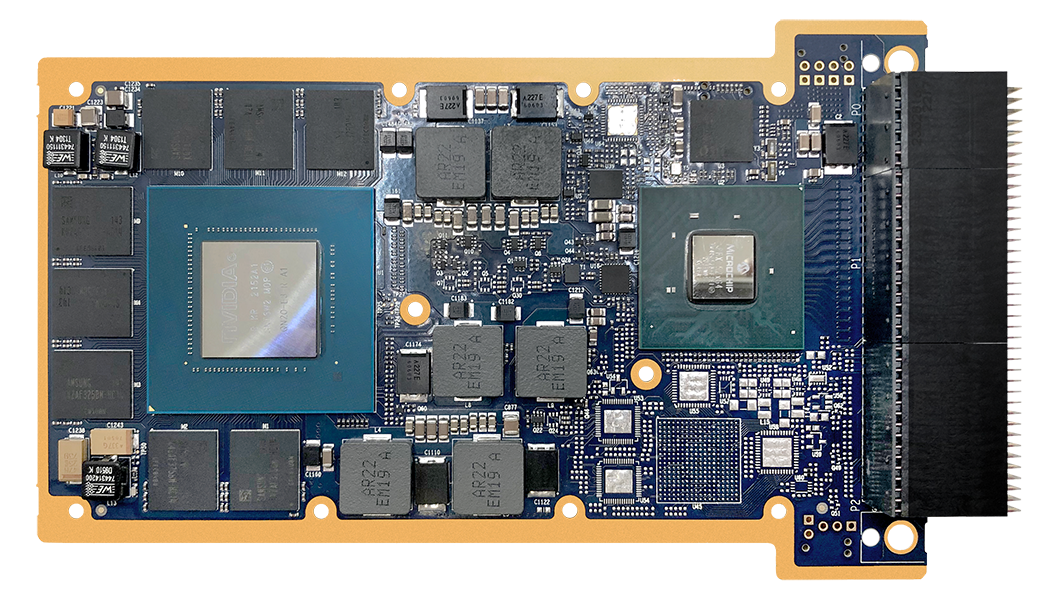

1448 VPX3U-A4500E-VO | NVIDIA RTX A4500 (GA104) | 14.6.11-0 (P2 depop), 14.6.13-0 (P2B depop) | SOSA Payload | 5888 | 16GB | N/A | Up to 4x DisplayPort 1.4 (DP++), options for HDMI/DVI | PCIe Gen 4 | Gen 4 | ||
 |

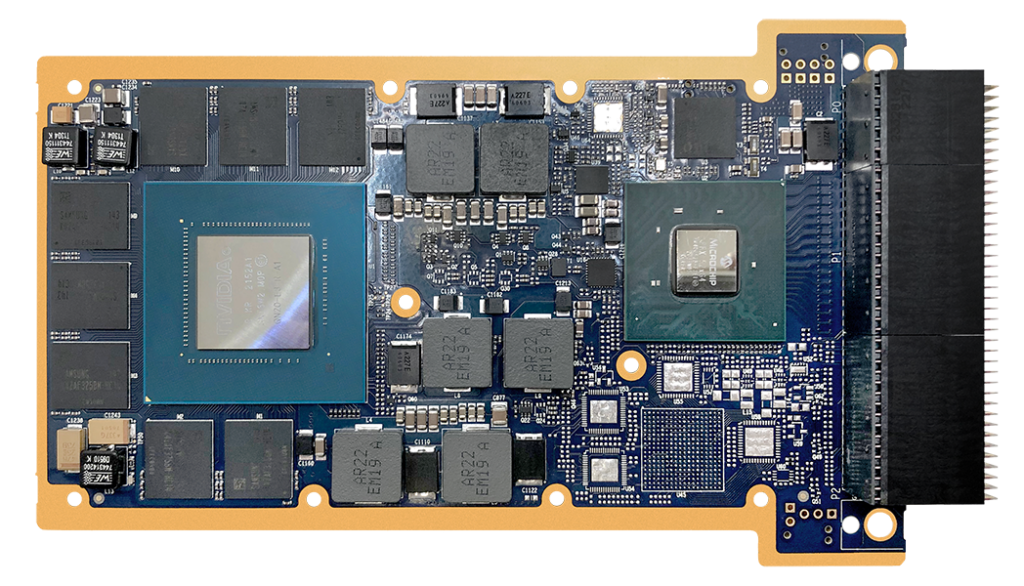

1440 VPX3U-A4500E-IO | NVIDIA RTX A4500 (GA104) | 14.2.3 | SOSA Payload, SOSA Legacy | 5888 | 16GB | 2x 3G-SDI | 2x DisplayPort 1.4, 2x converted outputs (3G-SDI/CVBS/RGB) | PCIe Gen 4 | Gen 4 |
- Preliminary : This product is preliminary. Specifications are subject to change. Contact WOLF for ordering numbers and configuration options.
- Reaching EOL : This product is reaching end of life. Contact WOLF to discuss new products that meet your requirements.
WOLF designs and manufactures 3U VPX video graphics modules that support the VPX REDI and OpenVPX standards. Contact us to discuss your specific requirements.
